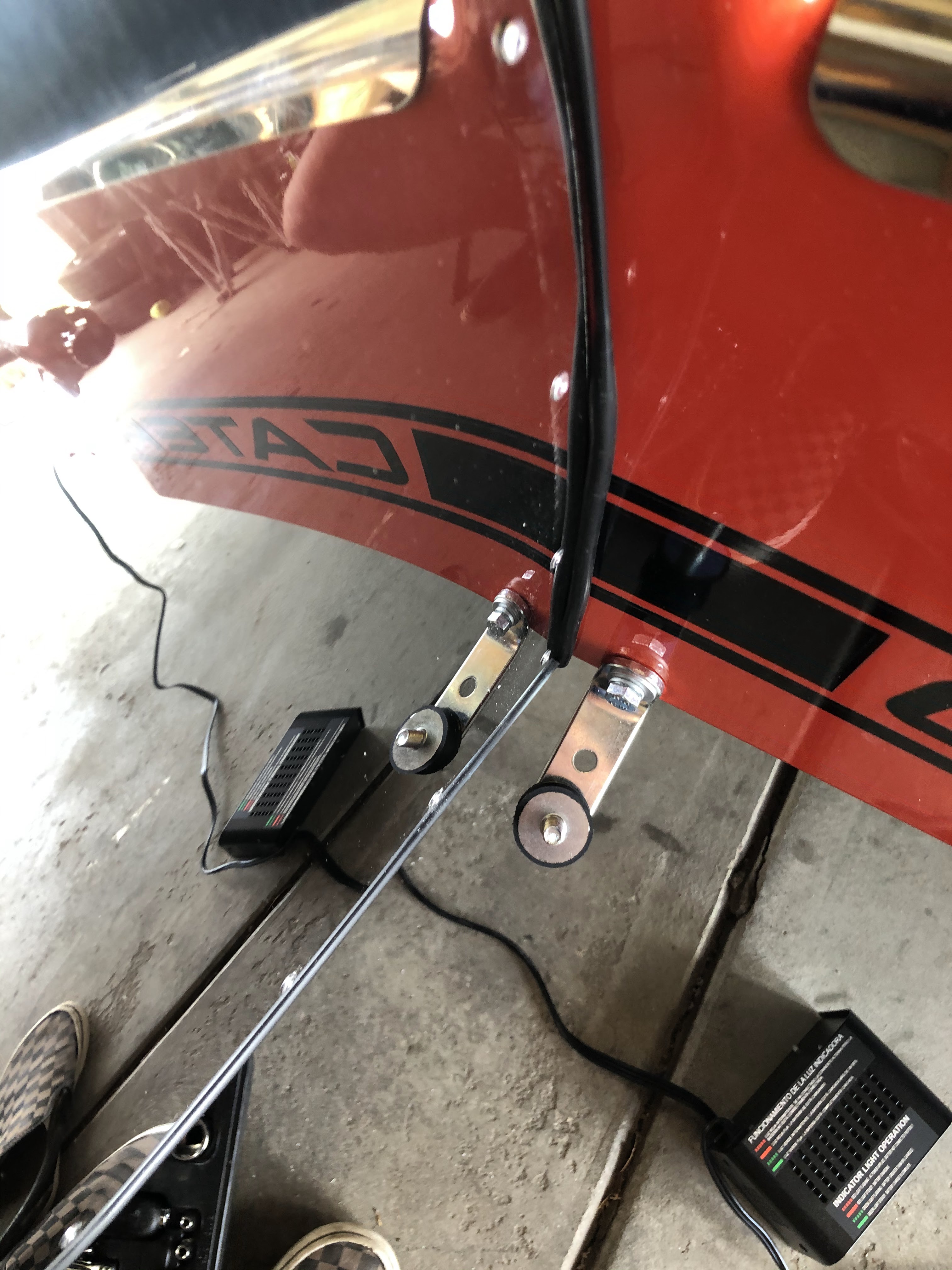

Before starting the car for the first time, I needed to fill fluids and install the exhaust piece that fit onto the collector. Installing the exhaust was pretty easy, but I had to slightly bend the mounting bracket to make the exhaust fit.
Getting the brakes setup was an easy process:
1- Fill brake master cylinder
2- Crack nipple off left rear brake
3- Pump brake pedal
4 - Hold brake pedal down
5 - Tighten nipple
6 - Pump brake pedal 3 times
7 - Hold brake pedal down
8 - Crack then retighten nipple
Repeat steps 2 - 8 until no bubbles come out.
The order for brakes is -
1 - Left rear
2 - Right rear
3 - Right front
4 - Left front
To fill the clutch. I attached a hose to the nipple on the bell housing. I then repeated the same brake filling process with the clutch.
To fill the radiator, I first filled the coolant expansion tank and then filled the radiator directly. Once the car starts, I will add extra fluid as it starts circulating.
The engine came prefilled with oil, so I just checked the levels.
